DocHalo supports receiving messages by WCTP, an HTTPS method of delivery..



Step 1: Configure DocHalo as a delivery method

1)Run PG Admin.

v9AdminSplash



2)Right click Carriers, select Add

RightClickCarriers



3)Specify the following and click Apply:

Carrier: DocHalo

Protocol: WCTP

Host: wctp.halospectrum.com/message

Port: 443

Max Chars: 160

DocHalo

4)Go to Carriers - DocHalo - Advanced

5)Specify the following:

Priority: 1

Username: Enter the DocHalo UserID.



Password: Enter the DocHalo password.

DocHaloAdvanced

6)Click Apply



Step 2: Create Recipients tied to the DocHalo method of delivery

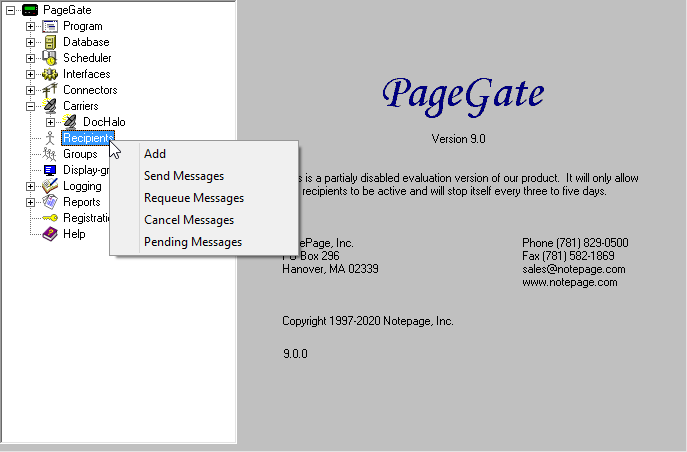

1) Right click Recipients, select Add.

DocHaloAdd

2)Specify the following:

Full Name: The name of the recipient

Recipient: This field will automatically populate but can be edited and may ONLY contain alphanumeric characters, underscores and dashes.



Type: Normal

Carrier: DocHalo

Failover: See Failover Scenarios

ID/PIN: The 8 or 12 digit DocHalo HDID

Examples: DH123456 or DH0001020A3B



Max Chars: Specify the number of characters you want the ability to send to this recipient. If this value is higher than the carrier's "Max Chars" value, PageGate will break up long messages in to multiple blocks.

DocHaloRecip

3)Click Apply.
