How to add a FAX carrier

Top  Previous  Next

The FAX protocol configures this carrier to send facsimile transmissions.



Note: The fax number to dial/send to is configured in the Recipients section.

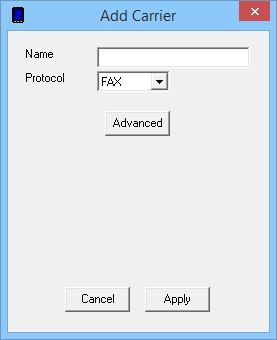

1)Select the FAX protocol.

AddFax

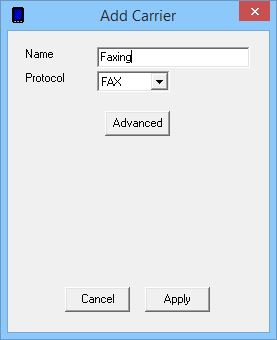

2)Give the Carrier a name.

AddFax3

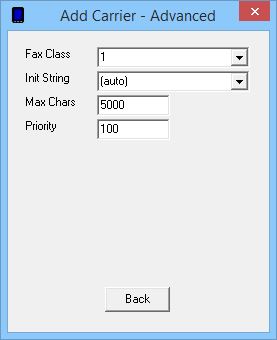

3)Click on the Advanced button.

AddFax2



4)Select the Fax Class. This must match at least one of the supported fax classes of your fax modem and the receiving fax machine. For more information on Fax Classes, click here.



5)If you are familiar with the AT command set of your modem and know the proper initialization string to use, enter it in to the Init String field or select it from the dropdown list. Otherwise, leave this field set to (auto).



6)The Max Chars value determines the maximum number of characters that can be transmitted in a single fax.



7)Set the Priority of the carrier. This can be set to a value from 1 to 100, with 1 representing the highest priority. The default value all carriers and recipients is 100, however, numbers larger than 100 can be used.



8)Click on Back.

AddFax3



9)Click on Apply.

CarrierRecordAdded



10)Click on OK.
