To begin the process of registering on Sprint's EMG, you'll want to contact your Sprint representative or go to https://emg.sprint.com
EMG supports receiving messages by SNPP and SMTP. With all both, we can configure a failover system where the program will use the best method of delivery (SNPP) first and if that fails, it makes a last ditch attempt to send it out via email (SMTP).
Special Notes:
•Port 444 will need to be open for SNPP.
•To configure the SMTP failover, you will need to know your SMTP server address, port to connect on and required authentication credentials.
Step 1: Configure Sprint-PRIMARY as a delivery method
1)Run PG Admin.
2)Right click Carriers, select Add
3)Specify the following:
Carrier: Sprint-PRIMARY Protocol: SNPP Host: snpp.messaging.sprint.com Port: 444 Max Chars: 160 |
|
4)Click Apply.
Step 2: Configure Sprint-FINAL as a delivery method
1)Right click Carriers, select Add
2)Specify the following:
Carrier: Sprint-FINAL Protocol: SMTP Host: messaging.sprintpcs.com Port: Specify the port required by your SMTP server. Max Chars: 160 |
|
3)Go to Carriers - Sprint-FINAL - Advanced
4)Specify the following:
Select the 'Deliver through outgoing mail server' option and enter your SMTP server address in the 'Relay Server' field.
For example, if you use Office365, you would use smtp.office365.com as the relay server address.
Specify the required username and password.
Priority: See Prioritizing Messages |
|
5)Click Apply
6)Go to Carriers - Sprint-FINAL - Template
7)Specify the following in the 'Settings' section:
From = The value from the username field EXAMPLE: From = CAD@notepage.com |
|
8)Click Apply.
Step 3: Configure the failover system
1)Go to Carriers - Sprint-PRIMARY - Advanced
2)Click the dropdown arrow next to 'Failover' and select: Sprint-FINAL
3)Click Apply
Step 4: Create Recipients tied to the Sprint-PRIMARY method of delivery

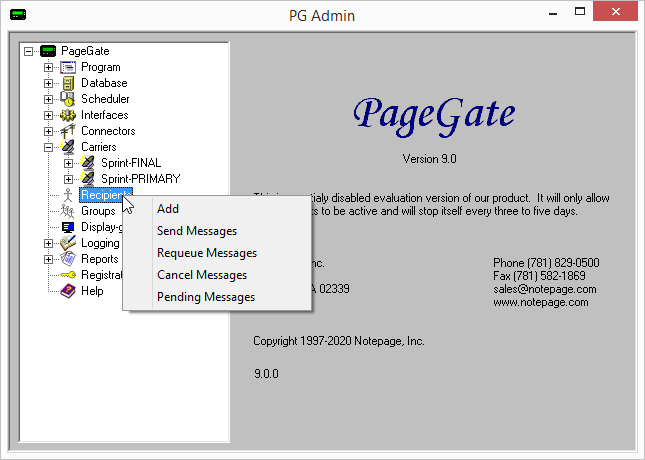

1) Right click Recipients, select Add.
2)Specify the following:
Full Name: The name of the recipient Recipient: This field will automatically populate but can be edited and may ONLY contain alphanumeric characters, underscores and dashes.
Type: Normal Carrier: Sprint-PRIMARY Failover: See Failover Scenarios ID/PIN: 10 digit cell phone number
Max Chars: Specify the number of characters you want the ability to send to this recipient. If this value is higher than the carrier's "Max Chars" value, PageGate will break up long messages in to multiple blocks. |
|
3)Click Apply.
