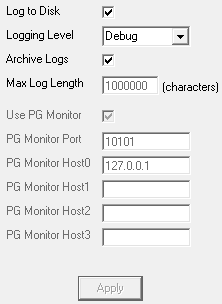

Setting

Function

Log to Disk

When this option is checked, all events are written to the log files. Unchecking this option disables PageGate's logging.

Logging Level

•Summary

Selecting this tells PageGate to only keep track of the date, time, sender, recipient and message information in the logs. The program will not record protocol negotiation sequences.

•Detail

Detail will write the specific commands sent and received but will not include a full breakdown of all characters sent and received in the protocol negotiation sequences.

•Debug (Recommended)

Selecting this will keep track of every command and response issued from and received to PageGate.

Archive Logs

Enabling this option will allow each day's logs to be archived. If this is enabled, every day at midnight, PageGate will move the previous day's logs to a sub-directory of the Logging Directory and name it the date of the archive.

Max Log Length

This field specifies how large the individual log files can become before old information is purged. If 'Archive Logs' is checked, this setting is ignored.

Use PG Monitor

This option specifies whether information is sent to the PageGate Monitor or not. If this option is not enabled, the PageGate Monitor will not display any information.

PG Monitor Port

This field specifies the TCP port the PageGate server broadcasts its monitoring information on. This field should match the PG Monitor port setting in the PageGate Monitor.

PG Monitor Host1 - Host3

These fields allow you to specify what additional systems can use the PageGate Monitor. Enter the LAN IP address or machine name of the systems you want PageGate to broadcast monitoring information to.

Apply

This saves all changes made.
