This section determines the directory or series of directories that GetASCII should look for content within and also specifies style of implementation as well as the naming convention of the files being worked with.

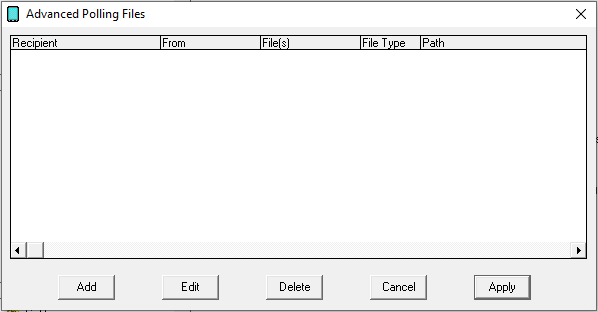

AdvancedPollingfiles



Option

Function

Add

Adds a new Advanced Polling rule.

Edit

Edits an existing Advanced Polling rule

Delete

Removes an existing Advanced Polling rule.

Cancel

Cancels all recent changes.

Apply

Applies new changes and rules.



To add an Advanced Polling Files option, click on the Add button.

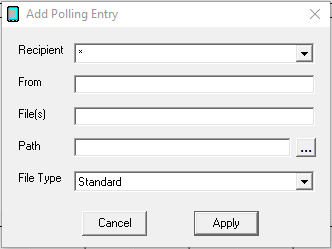

AddAdvancedPolling





Setting

Function

Recipient

By default, this field is set to all recipients (*).



If the asterisk(*) option  is used, this tells GetASCII that the recipient information will be contained within the file(s) processed.



If you select a recipient or group from the list, all messages processed by this rule will be delivered solely to the selected recipient or group.

From

This field is only used when a specific recipient or group is specified in the Recipient field, otherwise, leave this field blank.

If a specific recipient is used in the Recipient field, the 'From' field specifies what sender value to use for those messages.

File(s)

This field determines the naming convention of the file(s) you want GetASCII to look for. Wildcard characters (* and ?) may be used.

For example, an entry of *.txt will poll all files that end with .txt

An entry of *.?at will collect files like cat, bat, and rat, but not 'flat'.

An entry of custom*.xml will collect files like custom1.xml and custom_naming_scheme.xml or customer1234.xml

Path

This field determines the directory that this Advanced Polling entry will monitor. This can be set  to a local path (example: c:\PageGateData\ASCII\), UNC path (example: \\server\path\) or mapped drive location (example: S:\CADOutputLocation\).

Wildcard characters are not valid in this field.

If you're running PageGate as a Windows Service and your Advanced Polling is referencing a UNC path, you will usually need to provide a service account to the PageGate or PageGate GetASCII Windows services.

File Type

There are four options for the file type of each Advanced Polling rule:



Standard

Selecting this option tells GetASCII that text file(s) being referenced are in the standard ascii format.

This is option is usually used when files are in the standard ascii format, but aren't named with the standard .asc extension or are written to a directory other than the basic polling directory. When the Standard file type is selected, the other Advanced Polling sections (Symbols, Record, Recipient, Sender, and Message) are not referenced in the file read process.



Custom

When the Custom file type is selected, the other Advanced Polling options (Symbols, Record, Recipient, Sender, and Message) are used. Each text file must contain a single message, but the message information is not in the regular format and must be extracted from the text file using the Advanced Polling configuration.



Adding

The ascii file specified by the File(s) field periodically has message information added to the end of the file. With this file type the GetASCII Interface will read in any new data added to the file and extract the message information using the Symbols, Record, Recipient, Sender, and Message options.



Changing

The ascii file changes periodically. Each time the file specified in the File(s) field is changed, the GetASCII Interface will attempt to extract message information from it using the Symbols, Record, Recipient, Sender, and Message options. This option is different from Adding because the Adding option only looks at the end of the file specified. The Changing option assumes the entire file will be modified, not appended to.
